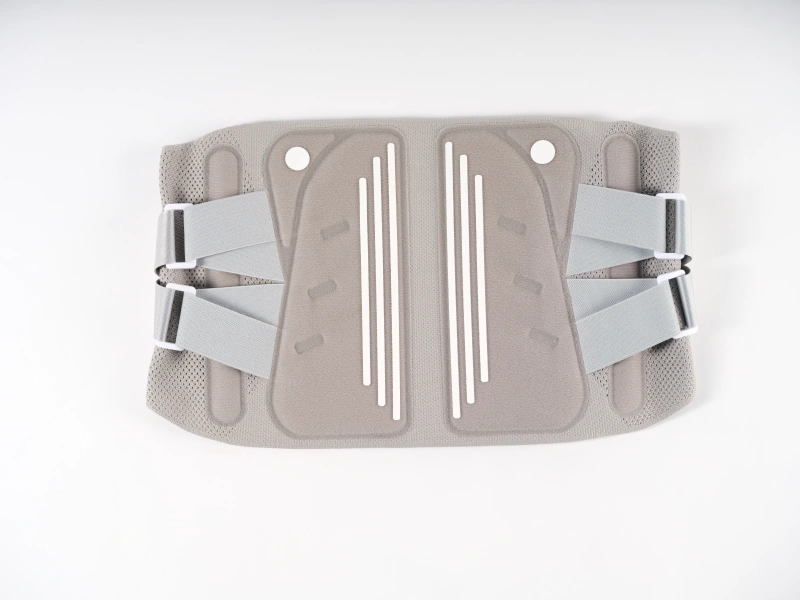

In the fields of sports protection and medical rehabilitation, the quality of the brace and support directly affects user safety and experience. As a professional manufacturer and supplier of supports and braces (for knees, elbows, wrists, and more), AOFIT regards process precision and product reliability as the cornerstone of its business. Among all production stages, the lamination and bonding process is the core factor determining product strength, fit, and durability. Today, we invite you to step into AOFIT’s modern factory and explore the powerful machines that make our high-quality supports possible.
Precision Cutting – The Foundation of Perfect Lamination
Every high-quality lamination begins with accurate material preparation. At AOFIT, the hydraulic rocker arm cutting machine takes on the critical task of precisely die‑cutting various materials (such as EVA, foam, and composite fabrics). With its stable hydraulic system and flexible rocker arm, combined with custom‑made cutting dies, this machine can punch multiple layers of material in a single stroke. The resulting high cutting accuracy ensures that every component part is consistent in size and clean‑edged before entering the lamination stage, eliminating material‑related defects from the very start and laying a solid foundation for subsequent bonding and forming.
High‑Frequency Welding – Creating Seamless Strength

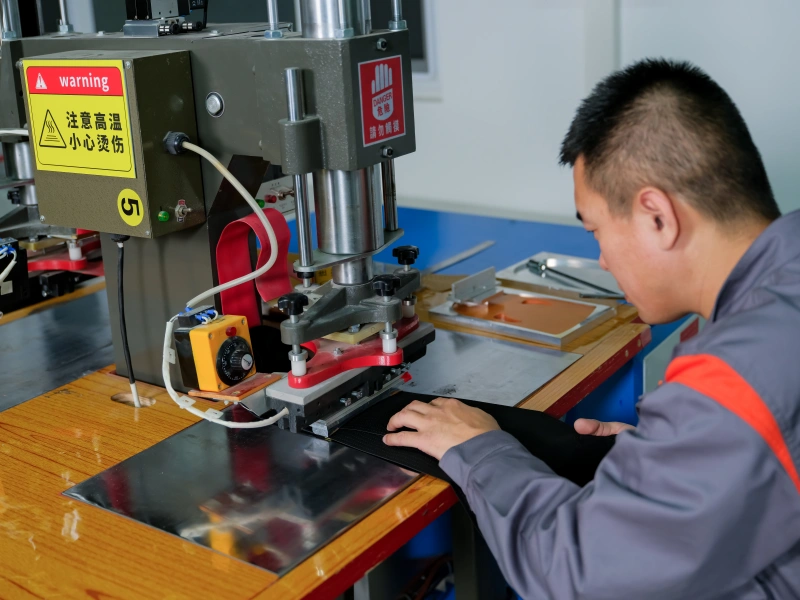

For knee pads, elbow braces, and similar products, a strong bond between multiple material layers is essential. AOFIT employs high‑frequency welding machines as the core equipment for this purpose. By generating a high‑frequency electromagnetic field, the machine causes polar plastic materials (such as PVC, TPU, and EVA) to polarise and rapidly vibrate, producing heat internally. Under the pressure of the mould, the material interfaces fuse at a molecular level. This non‑contact internal heating method results in a weld that is seamless, smooth, and far stronger than traditional adhesive bonding. It effectively prevents delamination or peeling even during prolonged use or intense sports activities.
Hot‑and‑Cold Alternation – Shaping the Perfect Fit
A good support must not only be strong but also conform to the body’s contours, which demands precise three‑dimensional forming. AOFIT’s three‑station sliding table hot and cold forming machine integrates both heating and cooling stages into one unit. The sliding table moves the material sequentially through a hot‑pressing station and a cold‑pressing station. The heat softens the material and shapes it into an accurate 3D contour according to the mould; immediately afterwards, the cold station rapidly cools and sets the shape permanently. This “hot‑and‑cold” coordination not only greatly improves production efficiency but also ensures that every support maintains a stable, consistent curved profile, achieving an excellent fit around joints such as knees and elbows.
Double‑Station Hot Press – Balancing Efficiency and Quality

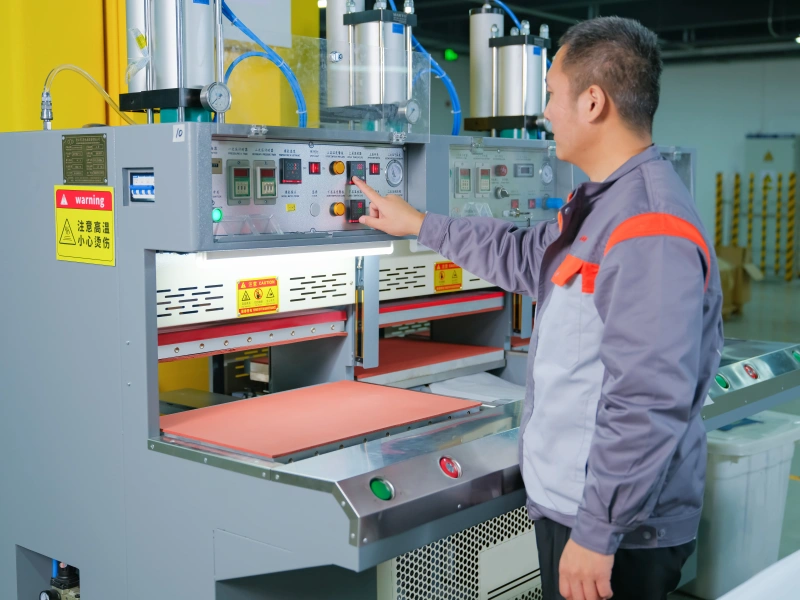

When handling large‑volume orders, production efficiency is just as important as quality control. AOFIT’s double‑station hot press offers an ideal solution. The machine has two alternating workstations, allowing the operator to load and unload materials on one side while the other side is under heat and pressure. This minimises idle time and enables a continuous, uninterrupted lamination workflow. At the same time, precise temperature and pressure controls guarantee consistent lamination quality across all batches, achieving the perfect balance between efficiency and precision.
Automatic Sliding‑Table High‑Frequency Fusing Machine – An All‑in‑One Solution

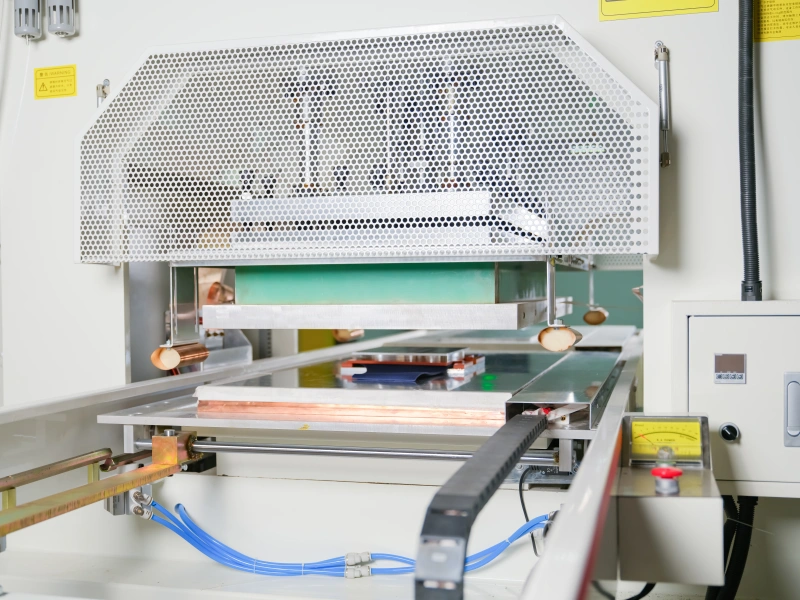

For products that require decorative inserts or simultaneous edge trimming, AOFIT has introduced the more integrated automatic sliding‑table high‑frequency fusing machine. This innovative equipment combines high‑frequency welding and cutting functions into one operation. An automatic sliding table feeds the material into the high‑frequency zone, where precise welding is carried out; then the mould simultaneously applies pressure to cut the material along the weld line. The entire process takes only 3 to 10 seconds per cycle. Not only does this eliminate the separate cutting step required after conventional welding, but it also ensures that the cut edge perfectly aligns with the weld line – because both actions are performed in the same station with the same mould. The result is a product with a neat, refined appearance.
Conclusion
Every machine and every lamination step at AOFIT embodies our deep commitment to professional supports and braces. These remarkably precise industrial machines, operated skillfully by our engineers, transform raw materials into high‑quality supports that combine superior protection with wearing comfort. They are then delivered to sports fields and medical facilities around the world.
Looking ahead, AOFIT will continue to advance its manufacturing processes and equipment, providing global users with safer, more ergonomic, and more durable professional supports and braces.
